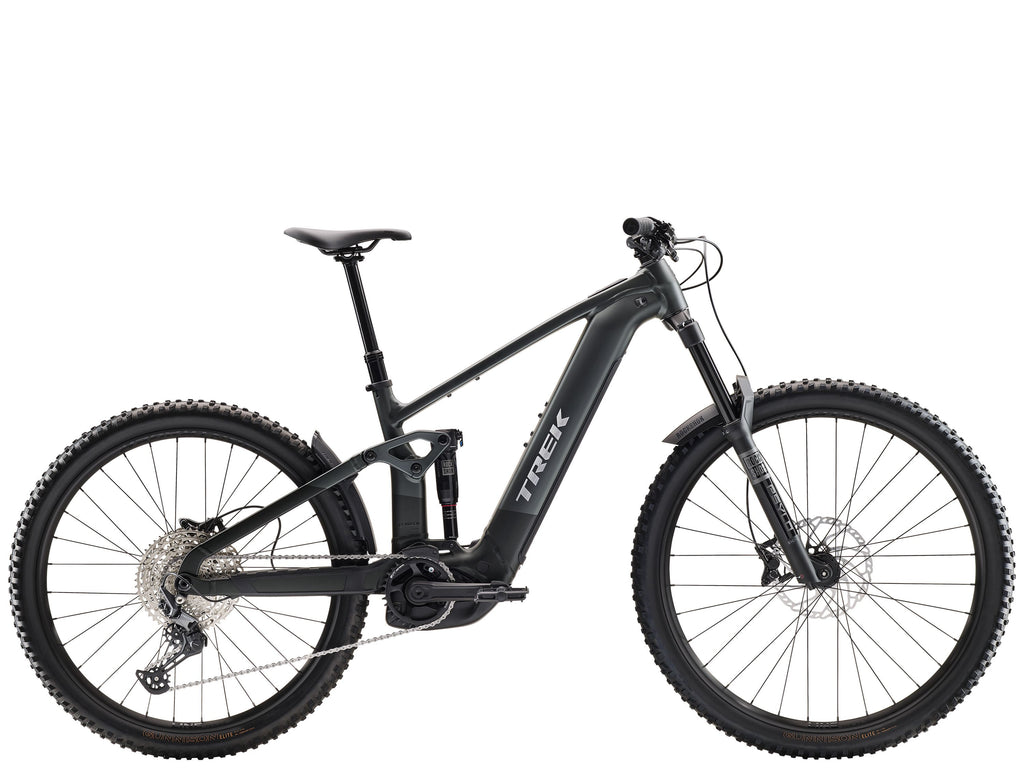

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
Specifications:
|
Frame |
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
|
Shock |
RockShox Deluxe Select+ RT, 205 mm x 65mm |
|
Fork |
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
|
Brakes |
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Front Derailleur |
N/A |
|
Rear Derailleur |
Shimano Deore M6100, long cage |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
|
Crankset |
E*thirteen E*spec Plus, 160 mm length |
|
Wheel Front |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|
Wheel Rear |
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle |
|
Tyres |
Rear: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi Front: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi |
|
Seatpost |
TranzX JD-YSI34, internal routing, 34.9 mm |
|
Battery |
Bosch standard 2A, 230V, smart system, 800Wh |
|
Motor |
Bosch Performance Line CX, 85Nm |
